Coffee Robots Factory Price for Manufacturing

Product details of the coffee robots

Quick Detail

The superior raw materials of CIANSUNG coffee robots are sourced from top-grade suppliers. This offered CIANSUNG brand product is with stable performance. Top quality coffee robots is the most important thing CIANSUNG can do to improve relationships with its customers.

Product Description

Compared with other coffee robots, the coffee robots produced by CIANSUNG has the following advantages and features.

Parameters

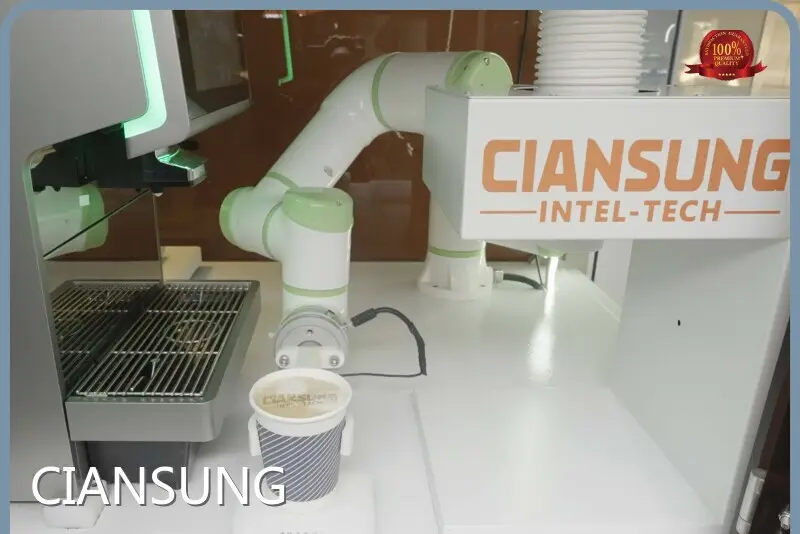

The coffee machine robot CSKF-G3 consists of four parts: a robotic arm, a cup drop machine, a coffee machine and a flower drawing machine.The parameters of each part are carefully programmed and calibrated to ensure precision and accuracy in their respective tasks. The robotic arm is designed to perform intricate and delicate movements with high dexterity and control. The cup drop machine is engineered to precisely and consistently place cups in designated locations with minimal margin for error.

The coffee machine is equipped with advanced brewing technology to produce high-quality, customized coffee beverages, while the flower drawing machine is programmed to create intricate and detailed floral designs with finesse and artistry. Each component is meticulously designed and rigorously tested to meet the highest standards of performance and reliability.

Robotic arm

Model	KF-G3
Self-esteem	16 kg
Payloads	3 kg
Working radius	600mm
Degree of freedom	6 rotating joints
Maximum terminal speed	1m/s
Repeat positioning accuracy	±0.02m/s
Installation method	Install at any angle
Rated power	300W
Material	Aluminum alloy, ABS plastic, PP plastic
Operating ambient temperature	0-50°C
Working environment humidity	5%-90% (No condensation)
IP grade	IP54
Noise	Small
Programming	Graphics programming, script programming

Cup drop machine

Support 3 modes of IO, 232 serial port, and 485 communication

Configuration	Parameter（Standard ● Optional○）
Bottled water automatically absorbs water	●
2L Water tank	●
Pressure-bearing automatic water inlet	●
Mobile payment	○
IOT system	○
Dual PUMP system	●
Display configuration	Capacitive touch screen
Display size	10.1”
Screen shape	Horizontal screen
One-click milk coffee	●
Custom coffee	●
Types of drinks	More than 20
Super hot water	●
Iced coffee	●
Regular cleaning of milk path	●
Automatic cleaning of milk path	●

Flower drawing machine

Electrical parameters	AC 110V-220V  50/60Hz
Grid parameters	WiFi 802.11 b/g/n
Cup height	5cm-18cm
Cup diameter	5cm-11cm
Product net weight	10kg
Operating power	200W
Appearance effect	Atmosphere light
Expandable peripherals	External power box power supply
Upgrade service	Lifetime software online upgrade

Various application scenarios

Example: Touch screen solution process

Click the touch screen to enter the menu page   →  Choose coffee and garland pattern →  Scan the code to upload, click submit

4 (7)

2 (12)
