Coffee Robots for Automation with Good Price

Parameters

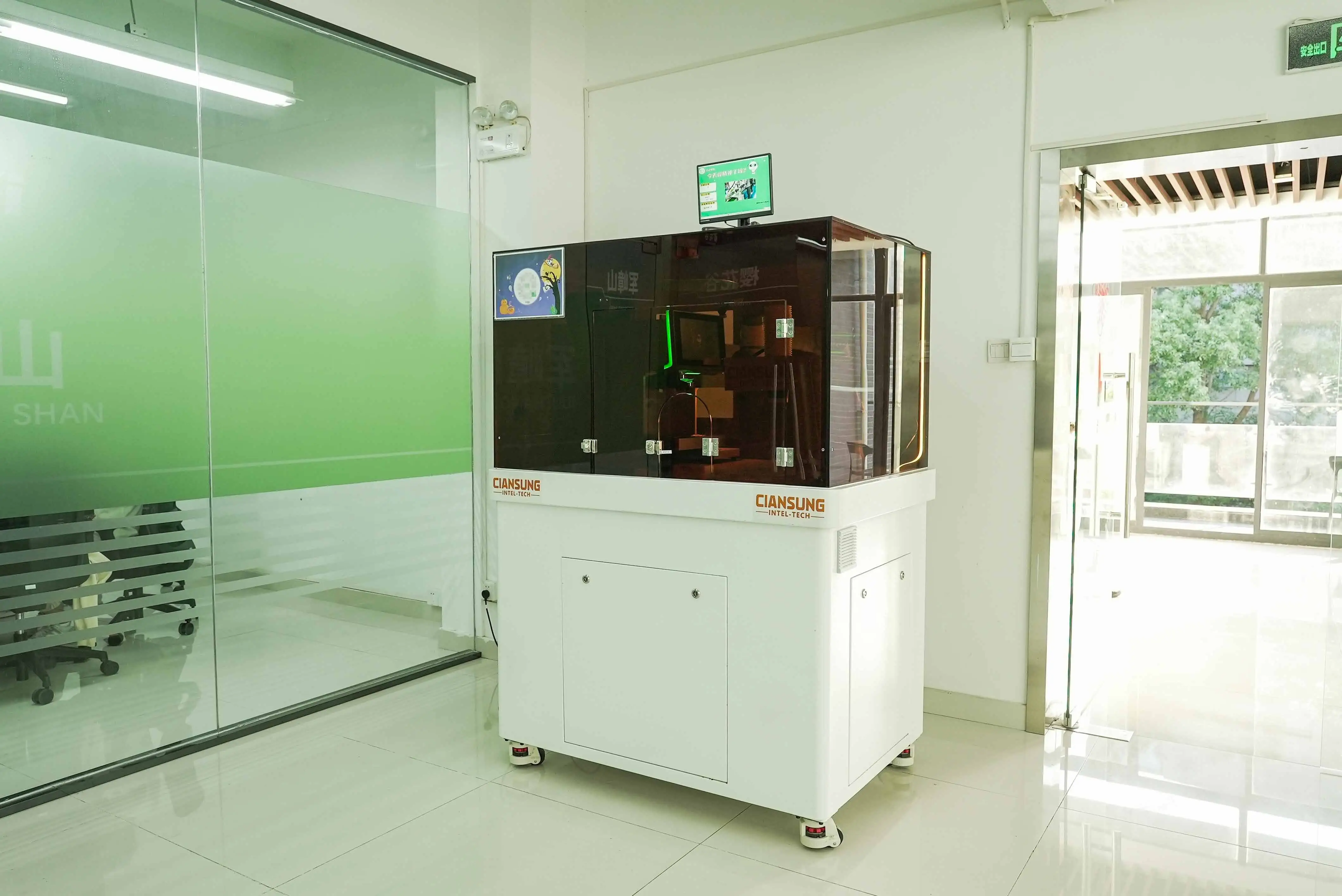

The coffee machine robot CSKF-G3 consists of four parts: a robotic arm, a cup drop machine, a coffee machine and a flower drawing machine.The parameters of each part are carefully programmed and calibrated to ensure precision and accuracy in their respective tasks. The robotic arm is designed to perform intricate and delicate movements with high dexterity and control. The cup drop machine is engineered to precisely and consistently place cups in designated locations with minimal margin for error.

The coffee machine is equipped with advanced brewing technology to produce high-quality, customized coffee beverages, while the flower drawing machine is programmed to create intricate and detailed floral designs with finesse and artistry. Each component is meticulously designed and rigorously tested to meet the highest standards of performance and reliability.

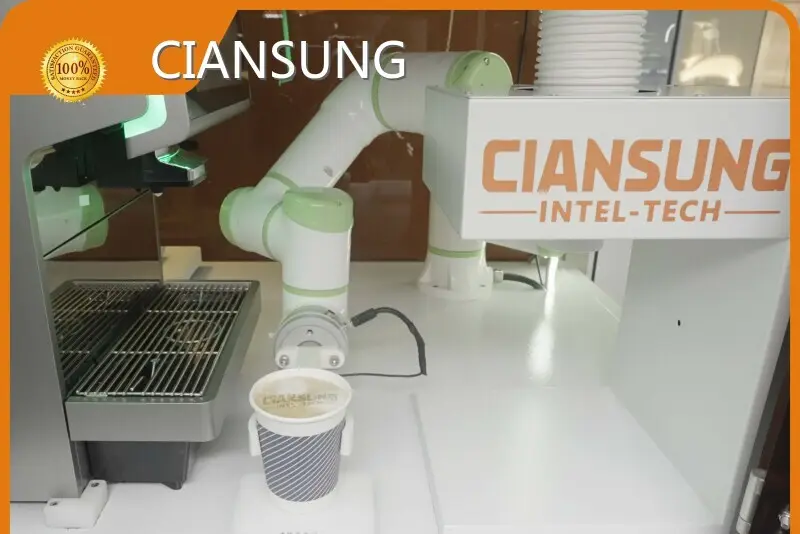

Robotic arm

Model	KF-G3
Self-esteem	16 kg
Payloads	3 kg
Working radius	600mm
Degree of freedom	6 rotating joints
Maximum terminal speed	1m/s
Repeat positioning accuracy	±0.02m/s
Installation method	Install at any angle
Rated power	300W
Material	Aluminum alloy, ABS plastic, PP plastic
Operating ambient temperature	0-50°C
Working environment humidity	5%-90% (No condensation)
IP grade	IP54
Noise	Small
Programming	Graphics programming, script programming

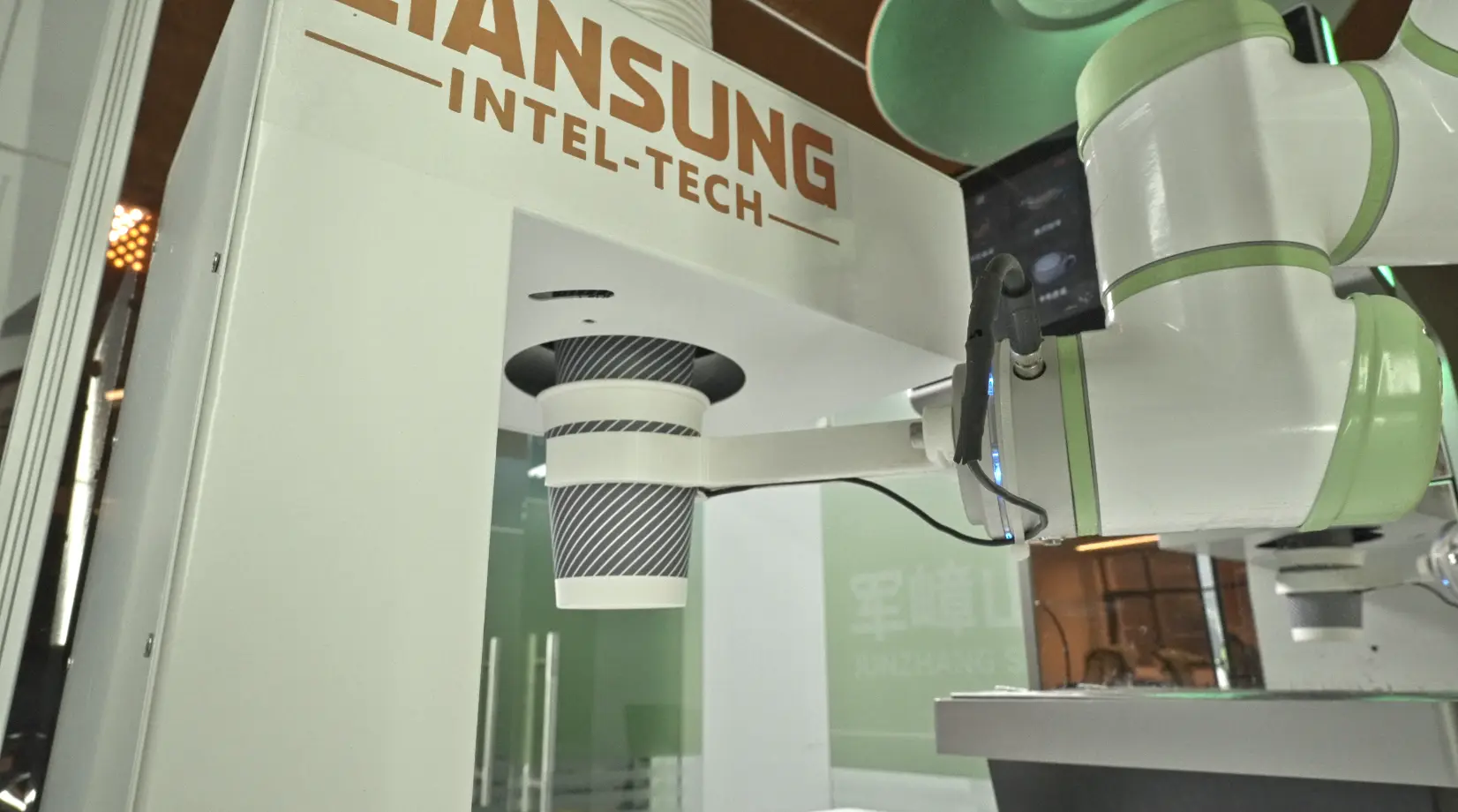

Cup drop machine

Support 3 modes of IO, 232 serial port, and 485 communication

Configuration	Parameter（Standard ● Optional○）
Bottled water automatically absorbs water	●
2L Water tank	●
Pressure-bearing automatic water inlet	●
Mobile payment	○
IOT system	○
Dual PUMP system	●
Display configuration	Capacitive touch screen
Display size	10.1”
Screen shape	Horizontal screen
One-click milk coffee	●
Custom coffee	●
Types of drinks	More than 20
Super hot water	●
Iced coffee	●
Regular cleaning of milk path	●
Automatic cleaning of milk path	●

Flower drawing machine

Electrical parameters	AC 110V-220V  50/60Hz
Grid parameters	WiFi 802.11 b/g/n
Cup height	5cm-18cm
Cup diameter	5cm-11cm
Product net weight	10kg
Operating power	200W
Appearance effect	Atmosphere light
Expandable peripherals	External power box power supply
Upgrade service	Lifetime software online upgrade

Various application scenarios

Example: Touch screen solution process

Click the touch screen to enter the menu page   →  Choose coffee and garland pattern →  Scan the code to upload, click submit

4 (7)

2 (12)

Company Advantages

· With the help of experienced craftsman, CIANSUNG coffee robots is produced following the highest production standards.

· The product is absolutely quality-assured as it has been thoroughly tested on every stage of the production process by our quality controllers as per the set industry norms.

· With so many economic benefits, the product enjoys a bright prospect on the market.

Company Features

· CIANSUNG is a professional customized coffee robots manufacturer.

· CIANSUNG has its own professional team to help improve the quality of coffee robots.

· We take part in various environmental certifications, such as those that assure consumers that goods they purchase from us are packaged in materials that have been obtained through sustainable and responsible means.

Application of the Product

The coffee robots produced by CIANSUNG is widely used in the industry.

We listen carefully to customer's requests and provide targeted solutions based on the bottleneck of customer. Therefore, we can help our customers to better solve problems.
