The use of three-dimensional warehouse equipment can realize the rationalization of the high level of the warehouse, access to automation, simplicity of operation; automated three-dimensional warehouse, is the current high level of technology in the form of. The main body of the automated three-dimensional warehouse by the shelves, alley stacking cranes, into (out of) the library workbench and automatic transportation into (out of) and the operation of the control system consists of.

    oops...!

    no product data.

    Go to homepage
    3 (32)

    Industrial production field: the first three-dimensional warehouse for pharmaceutical production is one of the earliest areas of application of automation.

    1. Pharmaceutical production: pharmaceutical production is the earliest application of automated three-dimensional library of one of the fields, in 1993, Guangzhou, Guangzhou Pharmaceutical Factory built China's earliest automated three-dimensional library for pharmaceutical production. Since then, Jilin Aodong, Northeast Pharmaceuticals, Yangzijiang Pharmaceuticals, Shijiazhuang Pharmaceuticals, Pharmaceutical Group, dozens of successful application of automated three-dimensional warehouse.

    2. Automobile manufacturing: China's earliest application of automated three-dimensional library of one of the fields. China FAW is the earliest application of automated three-dimensional library units.

    Logistics field.

    1. Tobacco distribution: widely used automated three-dimensional warehouse system.

    2. Pharmaceutical distribution: in response to the GSP certification, a large number of automated three-dimensional library was applied to the national pharmaceutical circulation. Such as national medicine, medicine, etc.

    Product advantage

    Intelligent Warehouse RackingAutomated Vertical StorageHeavy Duty StackerStereo WarehouseHigh Level BeamVertical Storage 8
    01
    Easy to control temperature and humidity due to centralized storage of materials in a limited space.
    全自动上下料、切断、倒角连线加工一体机-02
    02
    The centralized storage and computer control of goods facilitates the adoption of modern science and technology and modern management methods.
    6 (8)
    03
    Facilitate the formation of advanced logistics systems and improve the level of enterprise production management
    Intelligent Warehouse RackingAutomated Vertical StorageHeavy Duty StackerStereo WarehouseHigh Level BeamVertical Storage 11
    04
    Sheet metal standing warehouse adopts high-level rack storage and aisle stacker cranes operation, which can greatly increase the effective height of the warehouse, make full use of the effective area and storage space of the warehouse, centralize and three-dimensionalize the storage of goods, and reduce the floor space and land purchase cost.
    Intelligent Warehouse RackingAutomated Vertical StorageHeavy Duty StackerStereo WarehouseHigh Level BeamVertical Storage 12
    05
    It can realize the mechanization and automation of sheet metal warehouse operations and greatly improve work efficiency.
    Intelligent Warehouse RackingAutomated Vertical StorageHeavy Duty StackerStereo WarehouseHigh Level BeamVertical Storage 13
    06
    The sheet metal warehouse is controlled and managed by computers. The operation process and information processing are fast, accurate and timely, which can speed up material turnover and reduce storage costs.

    Sheet metal standing storage operation process

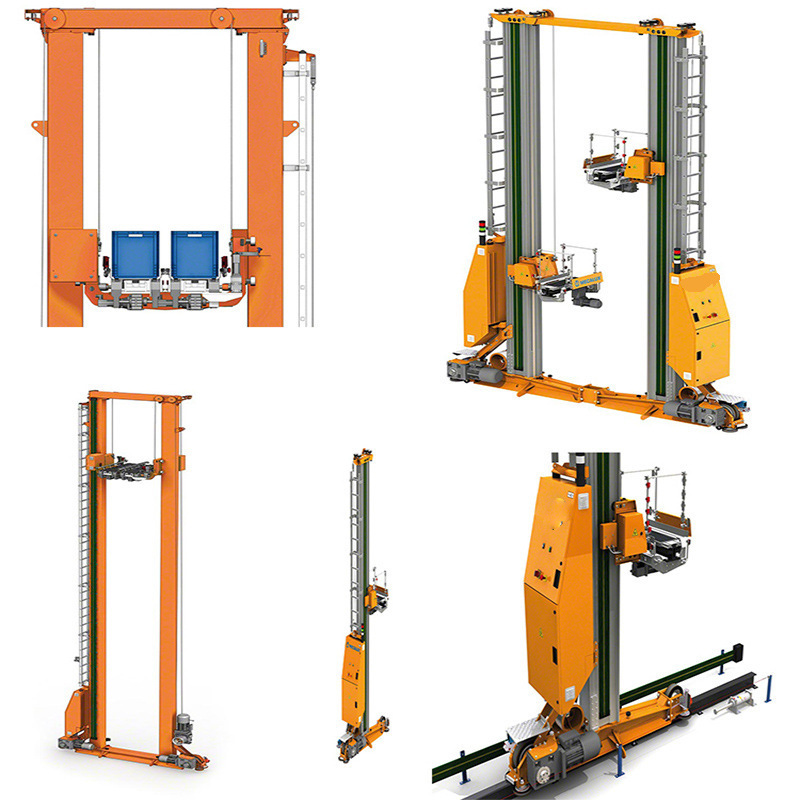

    The main body of a sheet metal standing warehouse consists of shelves, alley stacking cranes, inlet (outlet) tables and automatic inlet (outlet) and operation control systems. A rack is a steel or reinforced concrete building or structure with a standard size cargo space inside.  The aisle stacker crane travels through the aisles between the racks to complete the storage and retrieval work;  it is controlled and managed by the WCS system.

    Inventory Process:  The Sheet Metal LIBOR system responds to the request for inventory, pops up the inventory dialog box, and the user fills in the name and quantity of the goods to be inventoried;


    The system queries the order quantity.  If the order quantity is greater than the inventory quantity of the goods, an alarm will be issued.  Otherwise, the sheet metal warehouse system sends a warehouse operation task list to the warehouse computer, prints the warehouse document, and the warehouse computer controls the barcode system to scan the goods.  After scanning, the warehouse computer will determine whether the scanned goods and the task are consistent.  If they are consistent, storage sorting and transportation will be carried out.  If they are inconsistent, an alarm signal will be issued.


    Packaging and boxing:  Before small goods or parts enter the sheet metal warehouse, they are generally required to be packaged and boxed to meet storage requirements and make full use of storage space.


    Barcode Input:  The barcode representing the goods in a sheet metal standing warehouse generally contains four types of information: pallet number, article number, lot number, and quantity. The barcode is read in by the scanner, interpreted by the decoder, and then transferred to the computer via the serial port interface.


    Outbound process:  The process of goods out of the sheet metal warehouse is as follows: the system responds to the outbound request, a dialog box pops up, and the user fills in the name and quantity of the goods out of the warehouse.
