CIANSUNG CSF2-2000 High Speed Stable Positioning Automatic Intelligent Robot Forklift . 1
CIANSUNG CSF2-2000 High Speed Stable Positioning Automatic Intelligent Robot Forklift . 2
CIANSUNG CSF2-2000 High Speed Stable Positioning Automatic Intelligent Robot Forklift . 3
CIANSUNG CSF2-2000 High Speed Stable Positioning Automatic Intelligent Robot Forklift . 1
CIANSUNG CSF2-2000 High Speed Stable Positioning Automatic Intelligent Robot Forklift . 2
CIANSUNG CSF2-2000 High Speed Stable Positioning Automatic Intelligent Robot Forklift . 3

CIANSUNG CSF2-2000 High Speed Stable Positioning Automatic Intelligent Robot Forklift .

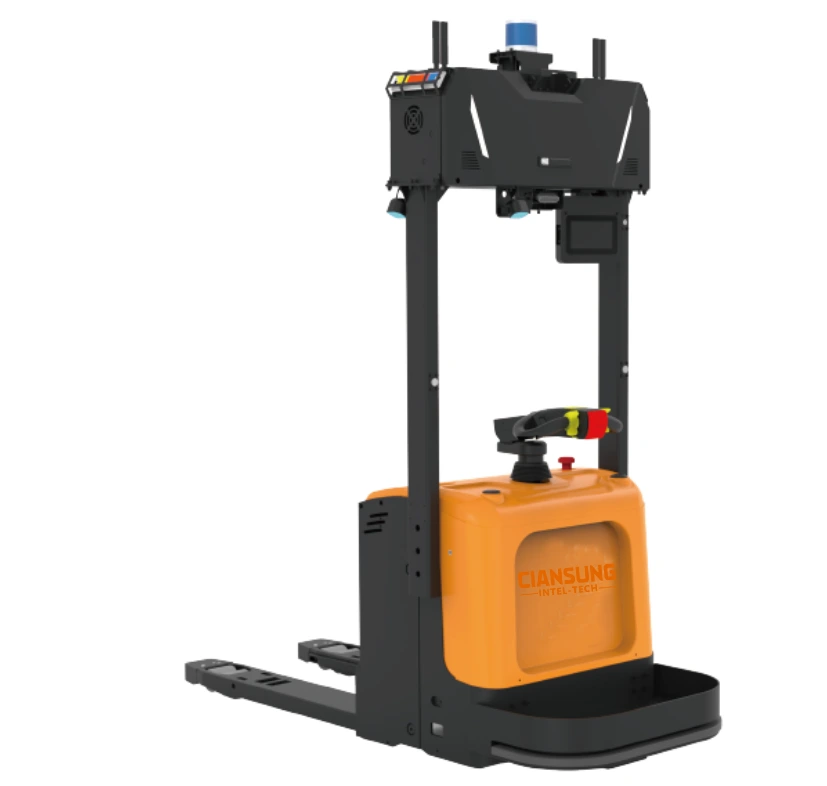

CIANSUNG CSF2-2000 High Speed Stable Positioning Automatic Intelligent Robot Forklift . The first to maintain high precision stable positioning at high speed of 2.6m/s. It realizes fast and high-precision large-scale intelligent path planning capability.

    oops...!

    no product data.

    Go to homepage

    Product parameter

     Machine size  mm

    2185*925*2300

    Machine weight  kg

    700

    load kg

    2000

    Rotation radius mm

    1875

    wheelbase mm

    1290

    Fork specifications mm

    1225*200*54

    Battery specifications

    24V/150Ah

    Charging duration  h

    2

    Battery life  h

    6-8

    Navigation method

    Slam laser

    Application scenarios

    Logistics handling

    图片1 (5)
    图片1 (5)

    Industry pain points

    Low degree of automation: no sorting line and other automated sorting equipment at the site


    Difficulty in recruiting labor: workers work in two shifts, long working hours, difficult to recruit; rising wages, serious worker turnover, manpower shortage


    Low manpower efficiency: artificial bottleneck, low operating efficiency, manual judgment prone to error


    Difficulty in management: frequent occurrence of manual forklift safety accidents, people driving and car will often crash, and even the phenomenon of the car hitting people, easy to lead to work-related injuries.

    undefined
    d62c0c31acefd74774fc9eee0adc366

    Solution

    Solution Name:Intelligent Transportation Flexibility Solution


    Product:Intelligent Transportation Vehicle CSF Series

    Operation scheme:The car is supplemented by large-scale intelligent cluster system, which can complete the automatic handling from the unloading port to the destination storage position by reading the storage position status, and can realize the automatic and picking up of goods handling.

    Understand our strengths

    CIANSUNG CSF2-2000 High Speed Stable Positioning Automatic Intelligent Robot Forklift . 7
    01
    By integrating on-board sensors, such as lasers, cameras, etc., to form a living map, real-time monitoring of the saturation and utilization rate of the cargo area, to help customers improve decision-making efficiency and reduce decision-making costs.
    CIANSUNG CSF2-2000 High Speed Stable Positioning Automatic Intelligent Robot Forklift . 8
    02
    Does not rely on additional sensors, real-time reconstruction of the cargo area through on-board sensors, independent selection of available cargo lanes, and early warning signals can be prompted in the case of artificial mixing and congestion in the cargo area.
    CIANSUNG CSF2-2000 High Speed Stable Positioning Automatic Intelligent Robot Forklift . 9
    03
    Solve the problems of channel occupancy and congestion through small detours in limited space, lane changes in the main channel, and backward detours, and increase the handling efficiency by 25%.
    CIANSUNG CSF2-2000 High Speed Stable Positioning Automatic Intelligent Robot Forklift . 10
    04
    It has a lightweight vehicle-side AI platform, which realizes a closed loop of cloud data for multi-modal large models, and the data can be traced back every time it is transported.
    DSC00555
    05
    In the case of difficult recruitment and shortage of labor, machines are used instead of manual cargo handling and loading and unloading, which can operate 24 hours a day to effectively solve labor problems; the average cost of a forklift to carry a pallet is 1 yuan, only electricity is required, and there is no need for social security provident fund and recruitment costs.
    DSC00553
    06
    The robot can still work in the evening shift, using time for space, and through the library transfer function, the storage density can be increased by more than 1 times.
    a0a74e402d12c4c1d0f0718dfc5e659
    07
    Manual operation will inevitably make mistakes, and robots can reduce the accident rate, reduce the cost of cargo damage, and the cost of medical treatment for work-related injuries.
    742005f9216bf8b116cf6ea16e70884
    08
    There are 0 blind spots around the body, 360° perception of the surrounding environment and corresponding adjustments are made to automatically avoid collisions. Even at a high speed of 2.6m/s, obstacles with a height of only 1cm can be detected to protect the safety of personnel and equipment.
    446ec1ea7399703f338eaaa6124b390
    09
    The use of local area network layout, no data leakage, access to sensitive customer information, customer-specific account management, the establishment of a dual-machine hot standby server, regular backup of vehicle operation data and sensor data to prevent data loss.

    1. Ultra-light delivery plan

    Can use PAD for vehicle scheduling and management (vehicle scheduling, data analysis, abnormal alarm);

    It is recommended to use PAD to make up for the shortcomings in the automated scheduling of the system and realize the “flexible” use of vehicles.;

    Through the optimization of digital terminals, the collaborative management of man and machine can be realized and the overall management efficiency can be improved.

    2. FREIGHT FIRST KILOMETER SERVICE PLATFORM

    Handling materials: fresh fruits, agricultural and sideline products

    Project scenario: Unloading port → merchant → shipping area

    Merchant→ Product reserve warehouse

    Handling process: The merchant calls the forklift through the terminal→ designated area → point-to-point handling

    Project results: reduce manual handling, reduce labor costs, and save more than 80% of manpower;  optimize the operation process, merchants only need to place an order online to easily complete the cargo handling, effectively saving communication costs and time costs, and improving handling efficiency.

    3. A CHEMICAL COMPANY

    Unmanned forklifts are required to complete the transportation of finished products from the production line to the temporary storage area; workers can dispatch unmanned forklifts through on-site pager or flatbed to achieve one-click call handling; unmanned forklifts can complete automatic fork picking through pallet attitude recognition, and then transport the goods to the warehouse area, according to the cargo lane recognition technology to determine the degree of overflowing of the cargo lane, and automatically return to the area to be forked after completing the automatic drop-off.

    Project results: After the introduction of the ”intelligent handling solution for line-side warehousing”, the operators on the customer's site can focus on production line production, fully realizing the separation of people and vehicles, and effectively improving on-site safety.Managers can directly count and manage vehicles and goods through the background of the system to ensure efficient on-site collaboration and improve on-site operation efficiency 60%

    4. A LARGE THIRD-PARTY LOGISTICS COMPANY

    Unmanned forklifts are required to complete the handling of goods on the warehouse plane and across floors;  to provide customers with on-site hazardous chemicals and chemical raw materials and other cargo handling, to achieve warehouse location management, cross-floor handling and cargo elevator docking and other full-process automated handling.

    Project results: effectively reduce manual handling work and save a lot of labor costs;  managers can directly count and manage vehicles and goods through the background of the system to complete the cross-floor handling of goods;  wood ant large-scale cluster dispatching system can adapt to the rapid changes in future business, can quickly expand capacity, facilitate system upgrades by module, and quickly respond to customer needs
